Construction Hoarding Factory and Manufacturing

We have been manufacturing fence and hoarding products since 2007. Our factory has 8 dedicated fence and hoarding production lines, along with 2 sheet-metal cutting and bending machines.

Our product range includes garden fencing and construction hoarding. We supply international markets including Australia, Canada, Europe, the United States and Japan.

Our factory is located in Dongli District, Tianjin, approximately 100 km from Tianjin Port.

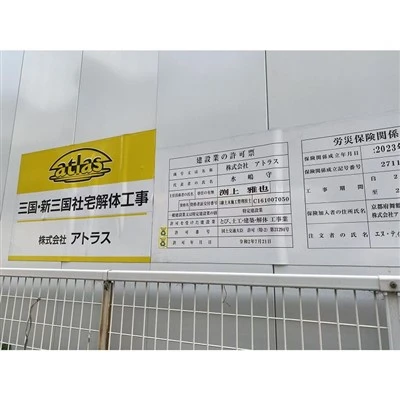

  • Site Hoarding Panels
    The frame pipe partition panels produced by China Juncheng Partition Panel Factory are easy to install and do not require welding. They can be reused for over 10 times and have special connecting parts, truly achieving zero loss. They...
    view more

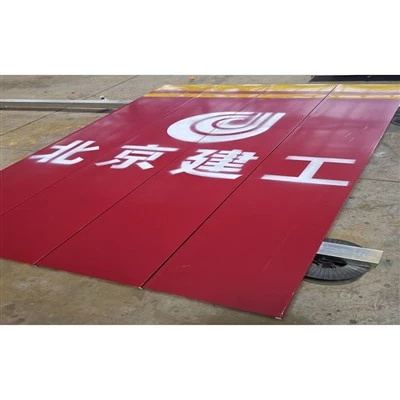

  • Building Site Hoarding
    The Chinese supplier, Tianjin Juncheng Steel Panel Enclosure Factory, is a modernized enterprise that has been deeply involved in the industry for 20 years.
    view more

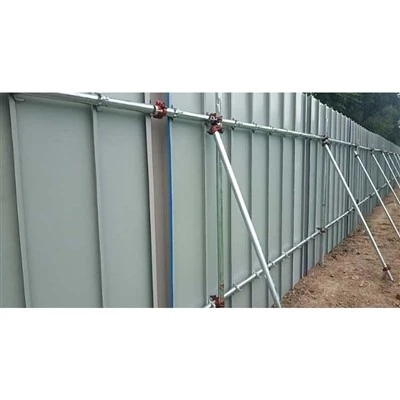

  • Building Hoarding
    China's fence panel supplier, Tianjin Juncheng Steel Panel Fence Factory, has been dedicated to the research and manufacturing of temporary construction products for 20 years. The company mainly deals in fence panels, color steel...
    view more
  • Hoarding On Building
    Juncheng Partition Color Steel Plate Factory in Tianjin, China, is a manufacturer with 20 years of experience in producing metal color steel plates and metal partition boards. We can customize and produce metal partition boards that...
    view more


Site Hoarding Structure and Connection Options

Our Site Hoarding Panels feature a frame pipe structure with a dedicated clip connection system, allowing installation without on-site welding. Three connection options are available: Japanese standard clips, thin clips and thick clips. Each option has different installation requirements and applicable height conditions.

The panels use a rear frame pipe structure. The three available clip configurations are:

Connection Type Applicable Conditions Installation and Maintenance
Japanese Standard Clip Japanese-standard hoarding panels; requires a flat wall or ground surface Fast installation. Bolts should be checked and tightened after rain or strong winds.
Thin Clip Hoarding height below 3 m; horizontal frame pipe spacing of 1200 mm Requires accurate frame pipe positioning. Installation is slower, with minimal subsequent maintenance according to the manufacturer.
Thick Clip Special high-level hoarding above 3.5 m Intended for high-level hoarding configurations.

The thin clip configuration requires accurate frame pipe spacing. The Japanese standard clip requires a flat installation surface. These conditions should be considered when specifying the connection system.

Construction Hoarding Installation and Reusability

Site Hoarding Panels use dedicated connectors instead of on-site welding, allowing the panels to be assembled and dismantled without field welding.

The manufacturer states that the connection design supports more than 10 reuses and is intended to avoid connection-related material loss.

For Japanese standard clips, bolt tightness requires inspection after rain or strong winds. The thin clip configuration is described as requiring little subsequent maintenance.

Construction Hoarding Customization Options

Customization options vary by product configuration.

Product Configuration Available Customization
Building Site Hoarding Anti-corrosion treatment, thickness and height
Building Hoarding Anti-corrosion treatment and dimensions
Hoarding On Building Temporary metal partition panels and permanently fixed metal partition panels

These options belong to their respective product configurations and should not be assumed to apply identically to every Site Hoarding Panels model.

Request a Construction Hoarding Supplier Quotation

Send us your required hoarding height, total length, preferred connection type and order quantity. You can also include project drawings or reference photos with your inquiry.

We will review your requested configuration and provide a quotation based on the applicable product options.
